緊急洗眼房
緊急洗眼器和沖淋設備是在有毒有害危險作業環境下使用的應急救援設施。當現場作業者的眼睛或者身體接觸有毒有害以及具有其他腐蝕性化學物質的時候，可以這些設備對眼睛和身體進行緊急沖洗或者沖淋，主要是避免化學物質對人體造成進一步傷害，但是這些設備只是對眼睛和身體進行初步的處理，不能代替醫學治療，情況嚴重的，必須盡快進行進一步的醫學治療。

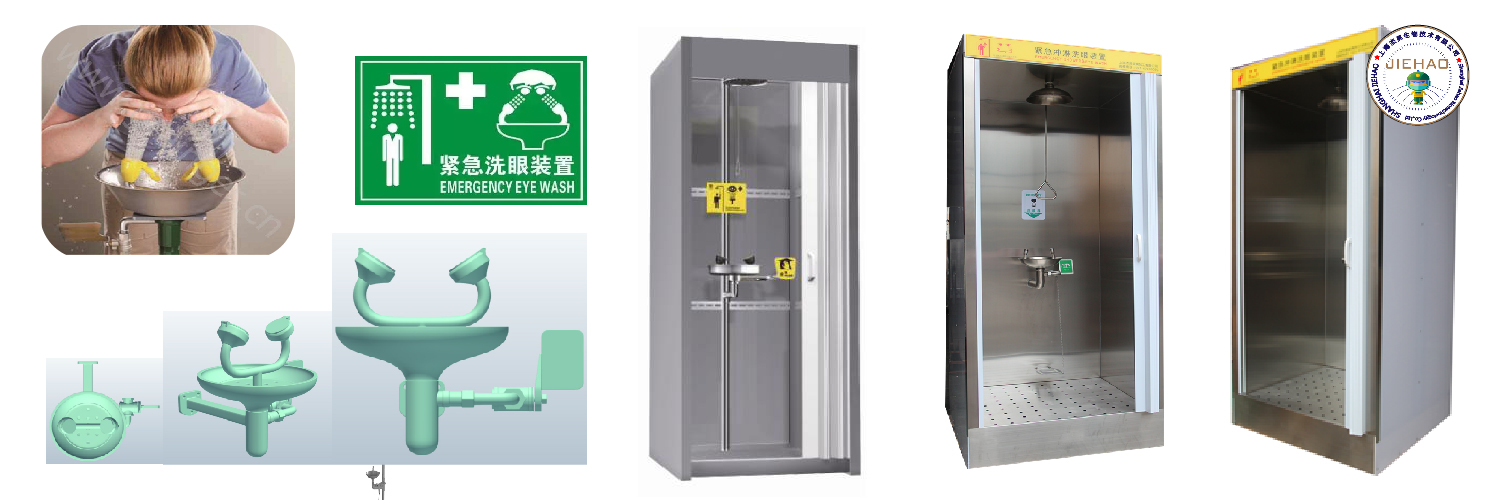

緊急洗眼房是配備噴淋系統和洗眼系統的緊急救護設備，并配有箱體和門，可整體直接安裝在地面上使用。當化學品物質噴濺到工作人員服裝或者身體上的時候，可以使用復合式洗眼器的噴淋系統進行沖洗，沖洗時間至少大于15分鐘；當有害物質噴濺到工人眼部、面部、脖子或者手臂等部位時，可以使用復合式洗眼器的洗眼系統進行沖洗，沖洗時間至少大于15分鐘。
技術參數
設計尺寸標準：900*1000*2200
使用環境溫度：0~60℃。
使用溫度：常溫
設計壓力：0.2-0.8MPa。
密封實驗壓力：0.4Mpa，保持15分鐘時間，沒有泄漏。
殼體試驗壓力：0.4MPa，保持15分鐘時間，沒有泄漏。
工作壓力： 0.2~0.4MPa。
進水口尺寸：NPT DN32內螺紋
排水口尺寸：NPT DN32 內螺紋
進水口高度：1537mm
排水口高度：115mm
沖淋噴頭高度：2224mm
洗眼噴頭高度：1057mm
洗眼流量：≥12L/min
沖淋流量：≥114/min
使用環境：環境溫度會出現低于0℃的地區，洗眼器前段供水管道內部水源必須做保溫處理，保證在冬天使用時不結冰。
廢水流向：現場必須有下水道或者廢水收集池。
供水方式：必須連續供水。
適用場所：可以適用于各類化學品物質的場所使用。
洗眼器采用工業無縫鋼管材質：工業級304不銹鋼材質
Emergency eye wash room
Emergency eye wash and shower equipment are emergency rescue facilities used in toxic and hazardous working environments. When the eyes or body of on-site workers come into contact with toxic, harmful, or other corrosive chemicals, these devices can be used for emergency flushing or rinsing of the eyes and body, mainly to avoid further harm to the human body caused by chemicals. However, these devices only provide preliminary treatment for the eyes and body and cannot replace medical treatment. In serious cases, further medical treatment must be carried out as soon as possible.
The emergency eye wash room is an emergency rescue equipment equipped with a sprinkler system and an eye wash system, and is equipped with a box and door. It can be installed directly on the ground as a whole for use. When chemical substances splash onto the clothing or body of workers, the spray system of the composite eye wash can be used for flushing, with a flushing time of at least 15 minutes; When harmful substances splash onto workers' eyes, face, neck, or arms, the eye wash system of the composite eye wash can be used for flushing, with a flushing time of at least 15 minutes.
Technical parameter
Design size standard: 900 * 1000 * 2200
Operating environment temperature: 0-60 ℃.
Operating temperature: room temperature
Design pressure: 0.2-0.8MPa.
Sealing test pressure: 0.4Mpa, maintained for 15 minutes without any leakage.
Shell test pressure: 0.4MPa, maintained for 15 minutes without leakage.
Work pressure: 0.2~0.4MPa.
Inlet size: NPT DN32 internal thread
Drainage outlet size: NPT DN32 internal thread
Inlet height: 1537mm
Drainage outlet height: 115mm
Spray nozzle height: 2224mm
Eye wash nozzle height: 1057mm
Eye wash flow rate: ≥ 12L/min
Flushing flow rate: ≥ 114/min
Usage environment: In areas where the ambient temperature is below 0 ℃, the internal water source of the water supply pipeline in the front section of the eye wash must be insulated to ensure that it does not freeze during winter use.
Wastewater flow direction: There must be a sewer or wastewater collection tank on site.
Water supply method: Continuous water supply is required.
Applicable places: It can be used in places where various chemical substances are used.
The eyewash is made of industrial seamless steel pipe material: industrial grade 304 stainless steel material
