杰昊生物安全VHP管道式傳遞窗
VHP管式式傳遞窗，也可叫生物安全傳遞窗，根據消毒方的不同，可分為生物安全紫外燈傳遞窗，生物安全層流傳遞窗，生物安全噴淋式傳遞窗等等。
VHP傳遞窗主要用于在不同級別的隔離房間之間安全傳遞物品。在這些環境中，物品在轉移前需要進行空氣顆粒清潔或表面生物消毒。如果需要VHP過氧化氫消毒，需要外接過氧化氫消毒機，該傳遞窗內部不含有過氧化氫發生器（如果需要內置過氧化氫發生器的傳遞窗，可關注本公司另一款產品：VHP傳遞窗）。
技術規格：
- 獨立的VHP消毒機可以與我們的VHP管道式傳遞窗連接。
- 適用于BSL3、BSL4、ABSL3、ABSL4高等級生物安全實驗室。
- 配備有互鎖生物安全氣密門，確保腔內密封安全。
- 含壓縮空氣路徑控制裝置，以實現精確操作。
- 由PLC自動控制系統操作，確?？煽孔詣踊?。
- 門可以通過按鈕控制打開和關閉，便于使用。
- 雙層視窗玻璃，提供清晰的視線。
- 可選的緊急釋放閥，用于安全。
- 可選的緊急停止按鈕，以便立即響應任何問題。
- 可選充氣氣密門或機械壓緊氣密門。
- 箱體可承受2500Pa的壓力 1小時無形變。腔體在正/負500Pa的壓力下，20分鐘內壓力變化不大于200Pa.

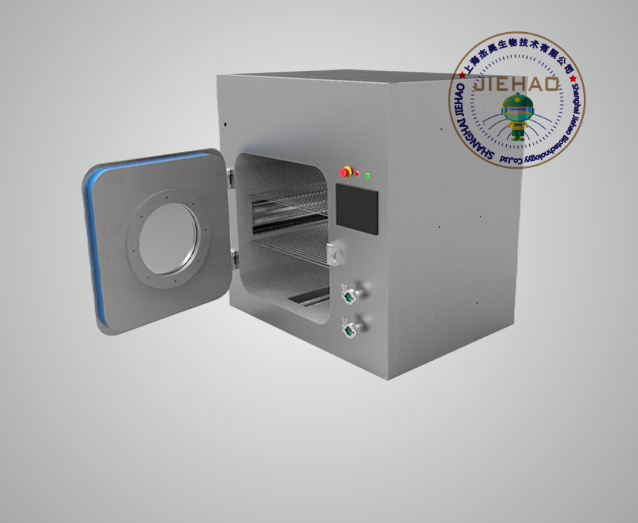

Jiehao Bio-Safety VHP Pipeline Transfer Chamber
The VHP pipeline transfer pass box, also known as the bio-safety pass box, can be classified into various types based on the disinfection method, such as bio-safety ultraviolet lamp transfer window, bio-safety laminar flow transfer window, bio-safety spray disinfection transfer window, and so on.
The VHP transfer window is mainly used for the safe transfer of items between different levels of isolation rooms. In these environments, items need to undergo air particle cleaning or surface biological disinfection before transfer. If VHP hydrogen peroxide disinfection is required, an external hydrogen peroxide disinfection machine is needed, and the transfer window does not contain a hydrogen peroxide generator inside (for a transfer window with a built-in hydrogen peroxide generator, please refer to another product of our company: VHP transfer window).
Technical Specifications:
- An independent VHP disinfection machine can be connected to our VHP pipeline transfer window.
- Suitable for high-level bio-safety laboratories such as BSL3, BSL4, ABSL3, ABSL4.
- Equipped with interlocking bio-safety air-tight doors to ensure the safety of the cavity seal.
- Includes a compressed air path control device for precise operation.
- Operated by a PLC automatic control system to ensure reliable automation.
- Doors can be opened and closed by button control for easy use.
- Double-layer viewing glass provides a clear line of sight.
- Optional emergency release valve for safety.
- Optional emergency stop button for immediate response to any issues.
- Optional inflatable air-tight door or mechanical press-tight air-tight door.
- The box can withstand a pressure of 2500Pa for 1 hour without deformation. The cavity, under a positive/negative pressure of 500Pa, has a pressure change of no more than 200Pa within 20 minutes.
This transfer chamber is designed and equipped to ensure the safety and reliability of item transfer in high-risk bio-safety environments, suitable for laboratories and facilities that require strict bio-safety control.
TAG: 生物安全傳遞窗， 生物安全氣密傳遞窗， P3實驗室傳遞窗， P4實驗室傳遞窗；高等級實驗室傳遞窗；VHP管道式傳遞窗；充氣門傳遞窗；生物安全管道式傳遞窗；生物安全消毒傳遞窗；VHP傳遞窗；Biosafety pass box; biosafety pass through box; biosafety inflatable pass box; P3 pass box; p4 pass box; high level laboratory; VHP pipe pass box; inflatable pass box; sterilze pass box; disinfect pass box; VHP pass box; vhp chamber; vhp transfer chamber;
需要更詳細的產品資料，請來電索取相關樣冊！
If you require more detailed product information, please call to request the relevant brochures!
