不銹鋼密閉房
我們嚴格按照高等級實驗室的一般規范要求，設計了一體式的全負壓不銹鋼密封房，整體圍護結構采用SUS304不銹鋼墻板組成，利用機器人焊機，結構基本為全滿焊設計，所有接縫均滿足實驗室打壓要求。不銹鋼密閉房常用于高等級P3生物安全實驗室和高等級P4生物安全實驗室。
產品特征：
- 材料：一般由304不銹鋼構建，提供衛生且不易腐蝕的表面。
- 密封性：設計用于創建密封環境，防止污染物或有害物質的逸出。
- 易于清潔：不銹鋼的光滑表面便于清潔和維護。
- 定制化：提供各種尺寸和配置，以滿足特定行業需求或客戶要求。
- 與氣密門配合：可與生物安全氣密門進行焊接處理，確保門的密封。
- 與穿墻密封件的配合：可與穿墻密封件進行焊接處理，確保電線等材料的密封通過。
- 與傳遞窗的配合：可與生物安全傳遞窗進行滿煹處理，確保傳遞窗與墻體的密封。
- 設施集成：能夠集成HVAC（暖通空調）、電氣系統和監控設備等設施。
- 安全特性：可能包括緊急出口、互鎖系統和其他安全機制，以確保密閉房?jī)?nèi)人員的安全。
應用：
適用于實驗室、藥品制造、食品加工以及其他需要嚴格控制污染的環境。
Stainless Steel Sealed room

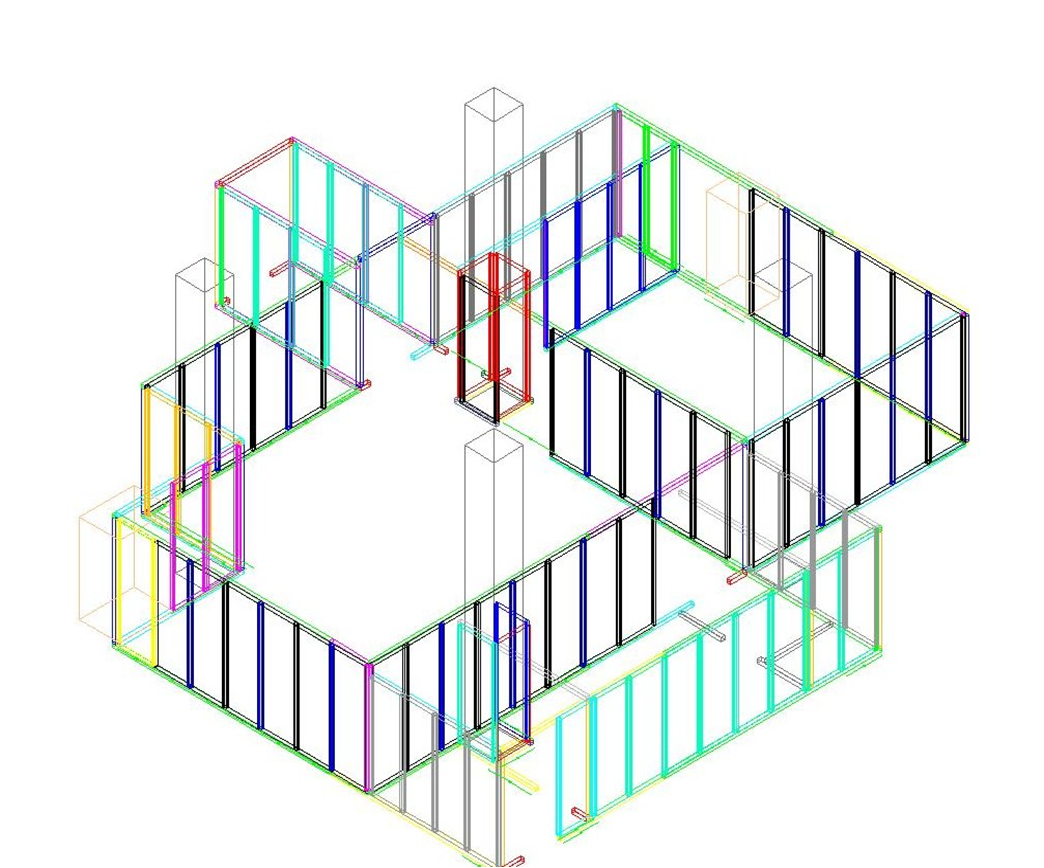

We have designed an integrated fully negative pressure stainless steel sealed chamber in strict accordance with the general specifications of high-grade laboratories. The overall enclosure structure is composed of SUS304 stainless steel wall panels, fully welded with a robot welder, and all seams meet the laboratory pressure testing requirements. Stainless steel sealed chambers are commonly used in high-grade P3 biosafety laboratories and high-grade P4 biosafety laboratories.
Product Features:
- Material: Generally made of 304 stainless steel, providing a hygienic and corrosion-resistant surface.
- Sealing: Designed to create a sealed environment to prevent the escape of contaminants or hazardous substances.
- Easy to Clean: The smooth surface of stainless steel facilitates cleaning and maintenance.
- Customization: Available in various sizes and configurations to meet specific industry needs or customer requirements.
- Compatibility with Airtight Doors: Can be welded with biosafety airtight doors to ensure door sealing.

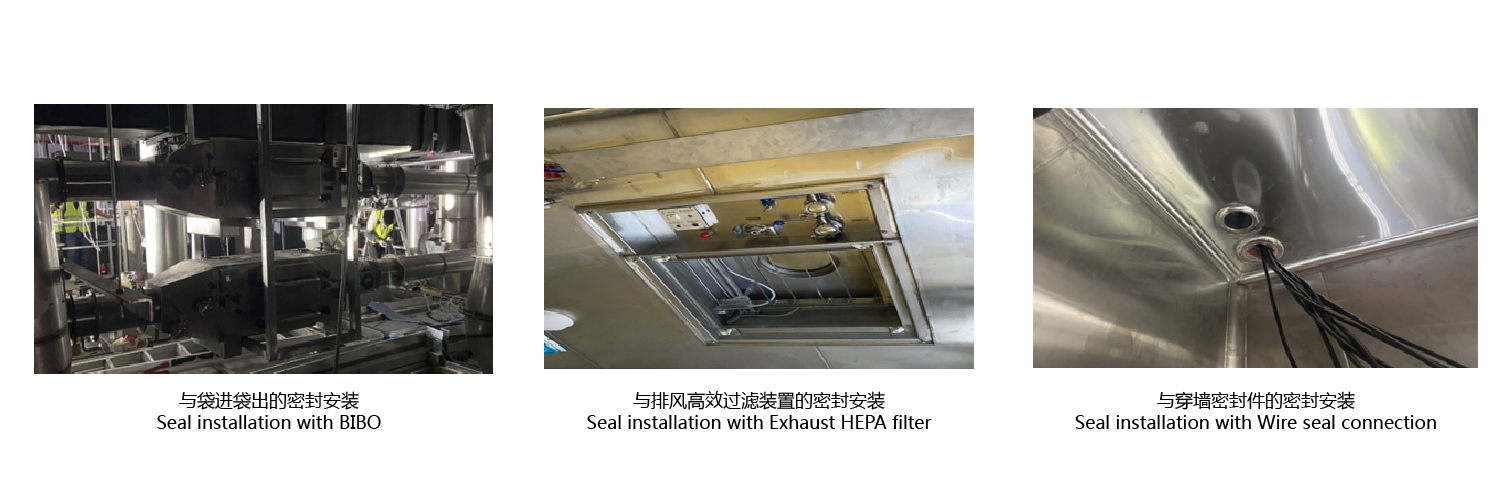

- Compatibility with Penetrating Seals: Can be welded with penetrating seals to ensure the sealed passage of wires and other materials.

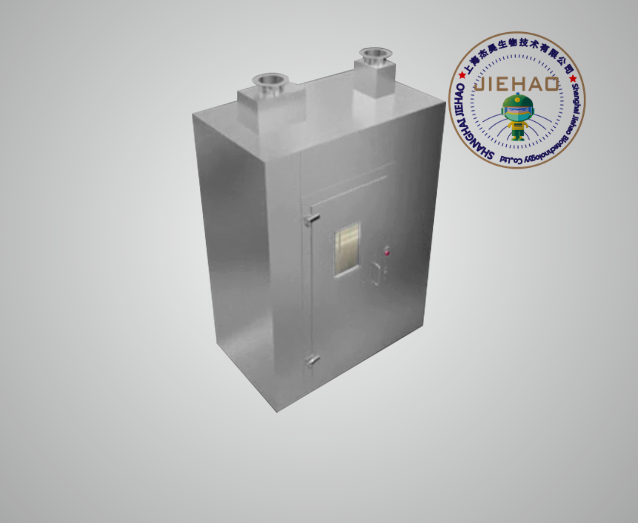

- Compatibility with Transfer Windows: Can be fully welded with biosafety transfer windows to ensure the sealing between the transfer window and the wall.
- Facility Integration: Capable of integrating facilities such as HVAC (heating, ventilation, and air conditioning), electrical systems, and monitoring equipment.
- Safety Features: May include emergency exits, interlocking systems, and other safety mechanisms to ensure the safety of personnel inside the sealed chamber.
Applications:
Suitable for laboratories, pharmaceutical manufacturing, food processing, and other environments that require strict control of contamination.

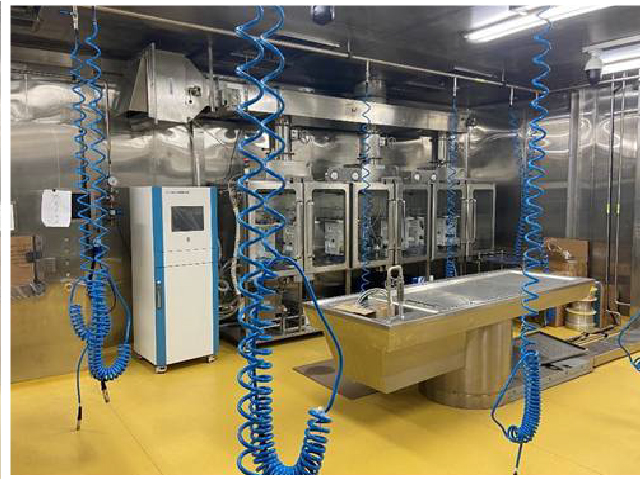

項目背景：
山東信得科技股份有限公司
項目?jī)?nèi)容：

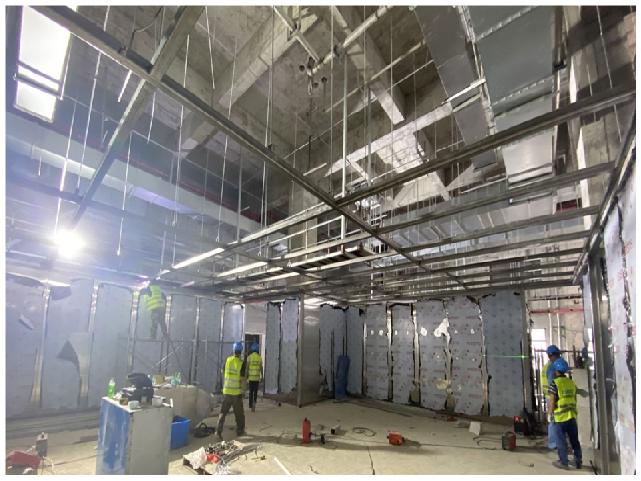

杰昊負責生物密閉房專業承包，負責搭建P3實驗室的不銹鋼密閉圍護結構以及生物安全氣密門、生物安全傳遞窗、強制淋浴產品的制造及安裝。
檢測報告：
符合生物安全三級防護GB19489/50346標準
2021年6月恒壓法通過國檢中心檢測
Applications:
Project Background:
The project is located in the high-level biological product intelligent manufacturing park of Shandong Xinde Technology Co., Ltd.
Project Content:
Jiehao Professional contracting for the construction of the stainless steel sealed enclosure structure of the P3 laboratory, as well as the manufacturing and installation of biosafety airtight doors, biosafety transfer windows, and forced shower products.
Test Report:
Complies with the biosafety level 3 protection GB19489/50346 standard.
Passed the national inspection center test by constant pressure method in June 2021.
項目背景：
國藥集團中國生物武漢生物制品研究所生物安全三級實驗室人間傳染病領域首家企業運營的P3實驗室
項目?jī)?nèi)容：
杰昊生物密閉房專業承包，負責搭建P3實驗室的不銹鋼密閉圍護結構。以及生物安全氣密門和生物安全傳遞窗產品的制造及安裝。
檢測報告：
符合生物安全三級防護GB19489/50346標準
2021年3月恒壓法通過國檢中心檢測
Project Background:
The P3 laboratory of the Wuhan Institute of Biological Products under China National Pharmaceutical Group Corporation, specializing in the field of human infectious diseases, is the first enterprise-operated P3 laboratory in China.
Project Content:
Jiehao Bio-sealed Chamber Professional Contracting is responsible for the construction of the stainless steel sealed enclosure structure for the P3 laboratory, as well as the manufacturing and installation of biosafety airtight doors and biosafety transfer window products.
Test Report:
Complies with the biosafety level 3 protection GB19489/50346 standard.
Passed the national inspection center test by the constant pressure method in March 2021.
TAG: 不銹鋼密閉房, 不銹鋼滿焊房間, 負壓房間, 不銹鋼房間, 不銹鋼實驗室,密閉房
Stainless Steel Sealed Chamber
- A sealed chamber made of stainless steel, designed to prevent the escape of contaminants and maintain a controlled environment.
Stainless Steel Fully Welded Room
- A room constructed entirely from stainless steel with full welding for superior sealing and structural integrity.
Negative Pressure Room
- A room designed to maintain a lower air pressure than the surrounding environment, which helps in controlling the spread of airborne contaminants.
Stainless Steel Room
- A room with walls, floors, and ceilings made from stainless steel, known for its durability, hygiene, and resistance to corrosion.
Stainless Steel Laboratory
- A laboratory facility constructed with stainless steel, providing a clean, sterile, and easy-to-maintain environment suitable for scientific research and experiments.
Sealed Chamber
- A room or enclosure that is designed to be airtight, often used in laboratories or industrial settings to contain specific conditions or substances.
