自凈傳遞窗 Pass box with fan

自凈傳遞窗是一種在潔凈室或無菌環境中使用的設備，它允許在不同級別的潔凈區域之間安全地傳遞物品，同時保持各自的潔凈度。這種設備的設計旨在防止污染物從一個區域進入另一個區域，確保產品質量和環境的穩定性。

自凈傳遞窗的主要特點包括：

1. 密封性：傳遞窗的門在傳遞過程中是密封的，以防止污染物通過門縫進入。

2. 空氣過濾：傳遞窗內部通常裝有高效空氣過濾器，確保通過傳遞窗的空氣是清潔的。

3. 自動控制：許多自凈傳遞窗配備有自動控制系統，可以控制門的開關，防止兩個門同時打開。

4. 紫外線消毒：一些傳遞窗可能配備紫外線燈，用于對傳遞物品進行消毒。

5. 壓力控制：傳遞窗可以設計成正壓或負壓系統，以保持特定區域的壓力，防止污染物的擴散。

6. 易于清潔：傳遞窗的內部和外部都設計得易于清潔，以維持其性能。

應用領域

自凈傳遞窗廣泛應用于制藥、生物技術、微電子制造和其他需要高潔凈度的行業。它們是確保產品質量和操作人員安全的重要工具。

Pass box with fan

The self-cleaning transfer pass box is a device used in clean rooms or sterile environments,allowing for the safe transfer of items between different levels of clean areas while maintaining their respective cleanliness.The design of this equipment is intended to prevent contaminants from entering another area from one area, ensuring product quality and environmental stability.

The main features of the self-cleaning transfer pass box include:

• Sealing: The doors of the transfer pass box are sealed during the transfer process to prevent contaminants from entering through the door seams.
• Air Filtration: The interior of the transferpass box is usually equipped with high-efficiency air filters to ensure that the air passing through the transfer box is clean.
• Automatic Control: Many self-cleaning transfer pass boxes are equipped with automatic control systems that can control the opening and closing of doors to prevent both doors from opening at the same time.
• Ultraviolet Disinfection: Some transfer pass boxes may be equipped with ultraviolet lamps for disinfecting the transferred items.
• Pressure Control: Transfer hatches can be designed as positive or negative pressure systems to maintain the pressure of a specific area and prevent the spread of contaminants.

• Easy to Clean: Both the interior and exterior of the transfer hatches are designed to be easy to clean to maintain its performance.

負壓傳遞窗

關于自凈傳遞窗為國內最為常用的傳遞窗之一，自凈式傳遞窗安裝有初效和高效，氣流在內部自動循環。另一種帶風機的傳遞窗為負壓傳遞窗，同樣安裝有初效的高效，但是與管道中的空氣進行交換，非內部氣流循環，從結構上是完全不同的。我們也稱之為負壓傳遞窗。

Regarding the self-cleaning pass box as one of the most commonly used types of pass through box in China, it is equipped with both pre-filters and high-efficiency filters, and the airflow circulates automatically within the unit. Another type of transfer hatch, which includes a fan, is the negative pressure transfer hatch. It also has pre-filters and high-efficiency filters installed, but it exchanges air with the air in the ducts rather than circulating air internally, which is a completely different structure. We also refer to it as a negative pressure transfer pass box.

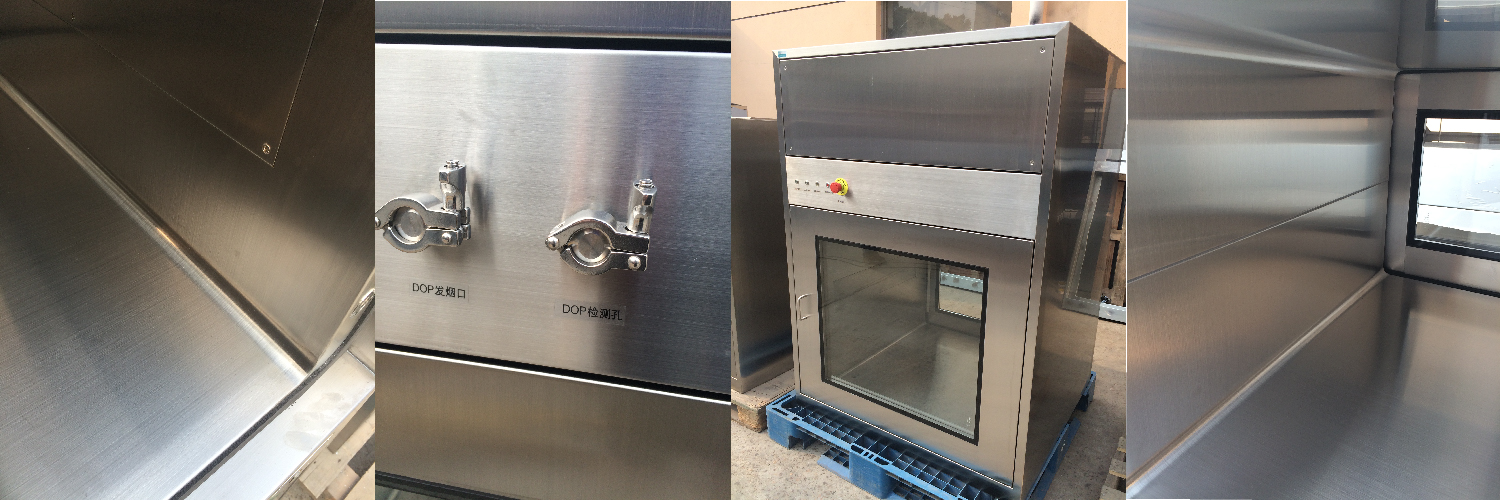

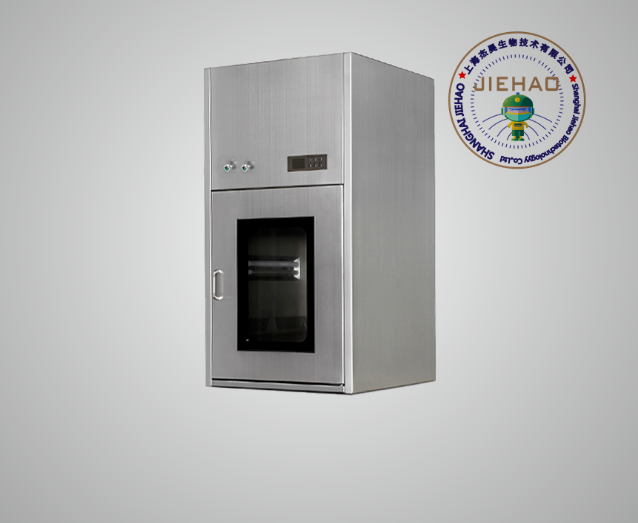

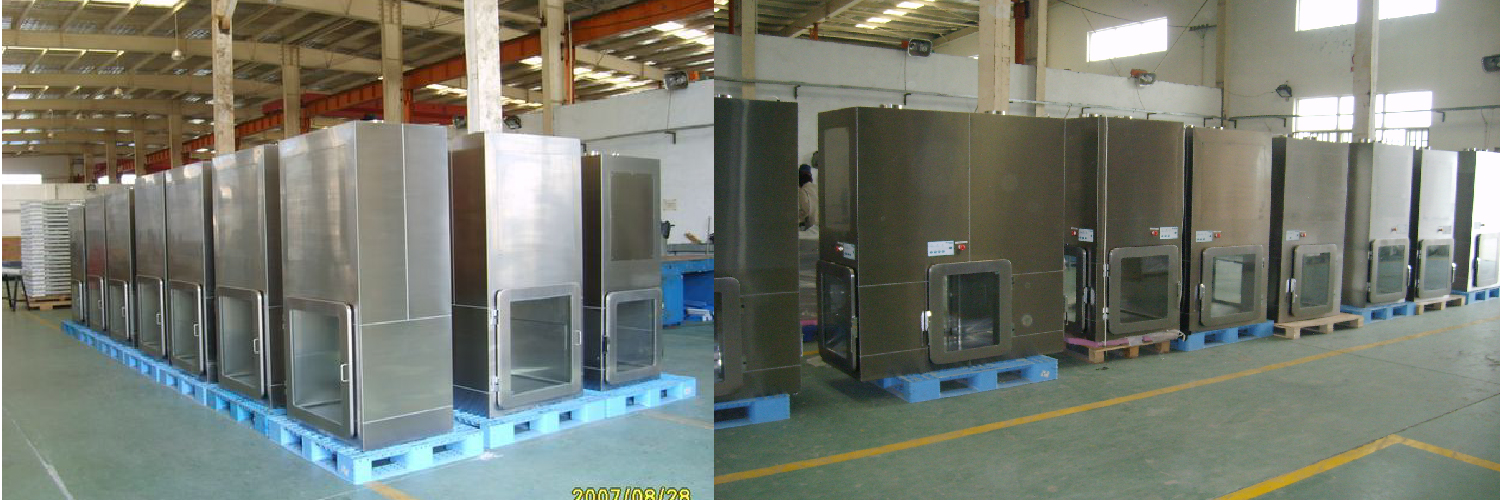

自凈傳遞窗照片Self-cleanin pass box

自凈傳遞窗，負壓傳遞窗， 傳遞窗， 雙門傳遞窗， 紫外燈傳遞窗， 層流傳遞窗，雙層傳遞窗

- 自凈傳遞窗 (Self-cleaning Pass box): A transfer Pass box equipped with features that allow for self-cleaning, often through the use of filters and sometimes UV light to maintain a sterile environment.
- 負壓傳遞窗 (Negative Pressure Pass box): A transfer hatch designed to maintain negative pressure within its chamber to prevent the spread of contaminants to adjacent areas.
- 傳遞窗 (Transfer Pass box): A general term for a window or portal used to transfer items between different environments or rooms, typically with controlled access to maintain cleanliness or security.
- 雙門傳遞窗 (Double-door Pass box): A transfer hatch system that features two doors, often used in airtight applications where one door must be closed before the other can be opened, ensuring no cross-contamination.
- 紫外燈傳遞窗 (UV Light Pass box): A transfer hatch that includes UV lamps for disinfection purposes, providing an additional layer of sterilization when transferring items.
- 層流傳遞窗 (Laminar Flow Pass box): A transfer window that incorporates laminar flow technology to maintain a unidirectional flow of filtered air, which is particularly important in cleanroom environments to prevent contamination.
- 雙層傳遞窗 (Double-layer Pass box): A transfer hatch with two layers, which may provide additional insulation or serve as a redundant barrier to enhance security or cleanliness.
