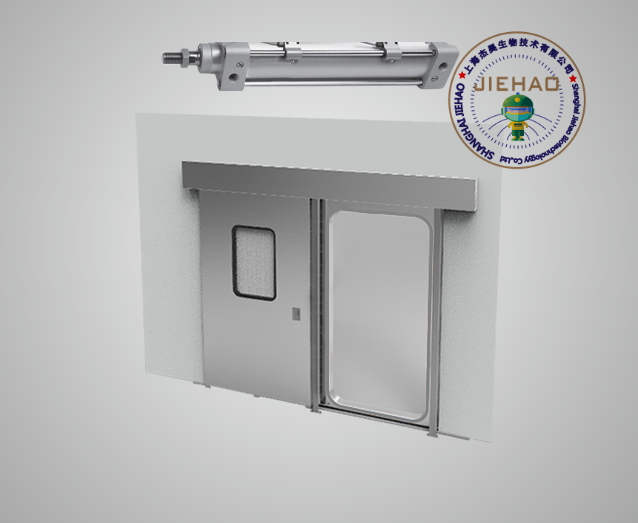

氣動移門  Pneumatic Sliding door

氣動移門作為公司最新開發的移門，利用氣體充氣帶動門的移動，對于電子廠房，對靜電粉塵限制要求特別高的場所，普通的電動門是無法滿足其要求的。電動門通過皮帶的傳動造成粉塵的產生，影響高精產品的生產。在此基礎上，氣門移門是非常適合的。氣動移門完全通過壓縮空氣來推動門的移動。

模塊化驅動器和配置文件系統長期保證可靠和低噪聲的運行。完美設計的門外觀優雅，可以根據客戶要求在安全性，性能和便利性方面進行擴展。根據要求，玻璃門使用窄，標準或堅固的玻璃型材，所有型號都可以配備逃生路線安全系統。

功能齊全，造型可靠，適應性強

經典單葉或雙葉自動滑門非常通用，適合滿足各種挑戰性要求。它們的開口寬度為800至3000 mm，可容納高達1 x 200或2 x 150公斤的門重。使用模塊化結構原則制定，這使得系統可以使用相同的精密制造部件在各種條件下安全和有效地適應，為客戶帶來了更短的安裝時間和降低維護和維護成本的好處。

操作的安靜性是杰昊自動門最顯著的特征。門靜靜地打開和關閉，這表明精密工程和材料的完美匹配。驅動器，傳感器和遠程通信的能力可以連續監控組件狀態。門系統及其各個電子部件的運行狀態也不斷進行合理性檢查。由于其學習能力，故障單元的潛力降至最低。

特征

• 系統技術具有學習能力，自動進行調整
• 20 mm或32 mm厚的鋁型材可用于10 mm和24 mm厚的單層中空玻璃
• 其他制造商的型材可以安裝在65 mm以內
• 兩個型材和驅動單元蓋可以陽極氧化或粉末涂層
• 正常版本的驅動單元高度可用于108 mm或150 mm
• 200 mm驅動高度可用于增強型號
• 驅動單元可以安裝在楣板上，獨立式或集成在天花板上

優點

• 模塊化結構能夠構建廣泛的門型號和應用
• 縮短安裝時間，降低服務和維護成本。
• 符合所有相關的國家和國際指南和標準
• 系統學習能力降低了設備故障的潛力

Classic linear sliding door - the all rounder

Pneumatic door as the latest development of the sliding door, using gas driven mobile door, for electronic factory, the electrostatic dust limit required for high places, ordinary electric door is unable to meet the requirements. The electric door drives the belt to drive the dust to produce, affects the high precision product the production. On this basis, the valve door is very suitable. The pneumatic door completely by compressed air to drive the movement of the door.

The modular drive and profile systems guarantee a reliable and low-noise operation over long periods. The perfectly designed doors with their elegant appearance can be expanded according to customer requirements with regard to security, performance and convenience. Depending on the requirements, narrow, standard or robust glass profiles are used for the glass doors, and all models can be equipped with escape route safety systems.

·     Beatifully functional, crafted, reliable and adaptable

Jiehao'sclassic single or double leaf automatic sliding doors are exceptionally versatile and are suited to meeting a wide range of challenging requirements. They have opening widths of 800 to 3 000 mm, and can accommodate door weights of up to 1 x 200 or 2 x 150 kilos. The Huomann uses the Huomann system which has been developed using modular construction principles. This allows the system to be adapted safety and efficiently to a wide range of conditions using the same precision crafted components. This results in benefits for the customer of shorter installation times and reduced service and maintenance costs.

The quietness of operation is the most striking feature of automatic doors. The doors open and close exceptionally quietly, which is indicative of the precision engineering and the perfect matching of materials. Our combination of short, low-momentum toothed belts, rollers made from hard-wearing, low-noise plastic, acoustically decoupled running tracks, guide pulley wheels with ball bearings and door leaf guides with specially developed guide profiles all contribute to its quietness in operation. The ability of the drive, sensors and remote to communicate enables continuous monitoring of component status. The operational status of the door system and its individual electronic components also continuously undergo plausibility checks. Thanks to its learning capacity, the potential of the unit to malfunction is reduced to a minimum.

Features

• the system technology has learning capacity and adjustments are made automatically
• 20 mm or 32 mm thick aluminium profiles available for 10 mm and 24 mm thick single insulating glass to allow the greatest possible transparency
• the profiles of other manufacturers up to 65 mm can be fitted
• both profiles and drive unit cover can be anodized or powder-coated
• drive unit heights for the normal versions are available in either 108 mm or 150 mm
• 200 mm drive heights are available for reinforced models
• the drive unit can be fitted to the lintel, be freestanding or integrated in the ceiling

Benefits

• modular construction enables the construction of a wide range of door models and applications
• can be adapted to suit the widest range of conditions
• shorter installation time and reduced service and maintenance costs.
• meets all relevant national and international guidelines and standards
• system learning capacity reduces the potential of the unit to malfunction

TAG:

氣動移門， 防靜電移門， 不銹鋼移門，非電動移門， 潔凈室移門，電子廠移門，半導體車間移門

- 氣動移門 (Pneumatic Slide Door): A door operated by pneumatic power, which uses air pressure to control the opening and closing of the door.
- 防靜電移門 (Anti-static Slide Door): A door designed to prevent the generation and spread of static electricity, commonly used in environments where static control is necessary.
- 不銹鋼移門 (Stainless Steel Slide Door): A slide door made from stainless steel, known for its corrosion resistance and ease of cleaning.
- 非電動移門 (Non-electric Slide Door): A slide door that does not rely on electric power and may be operated manually or by other means such as pneumatics.

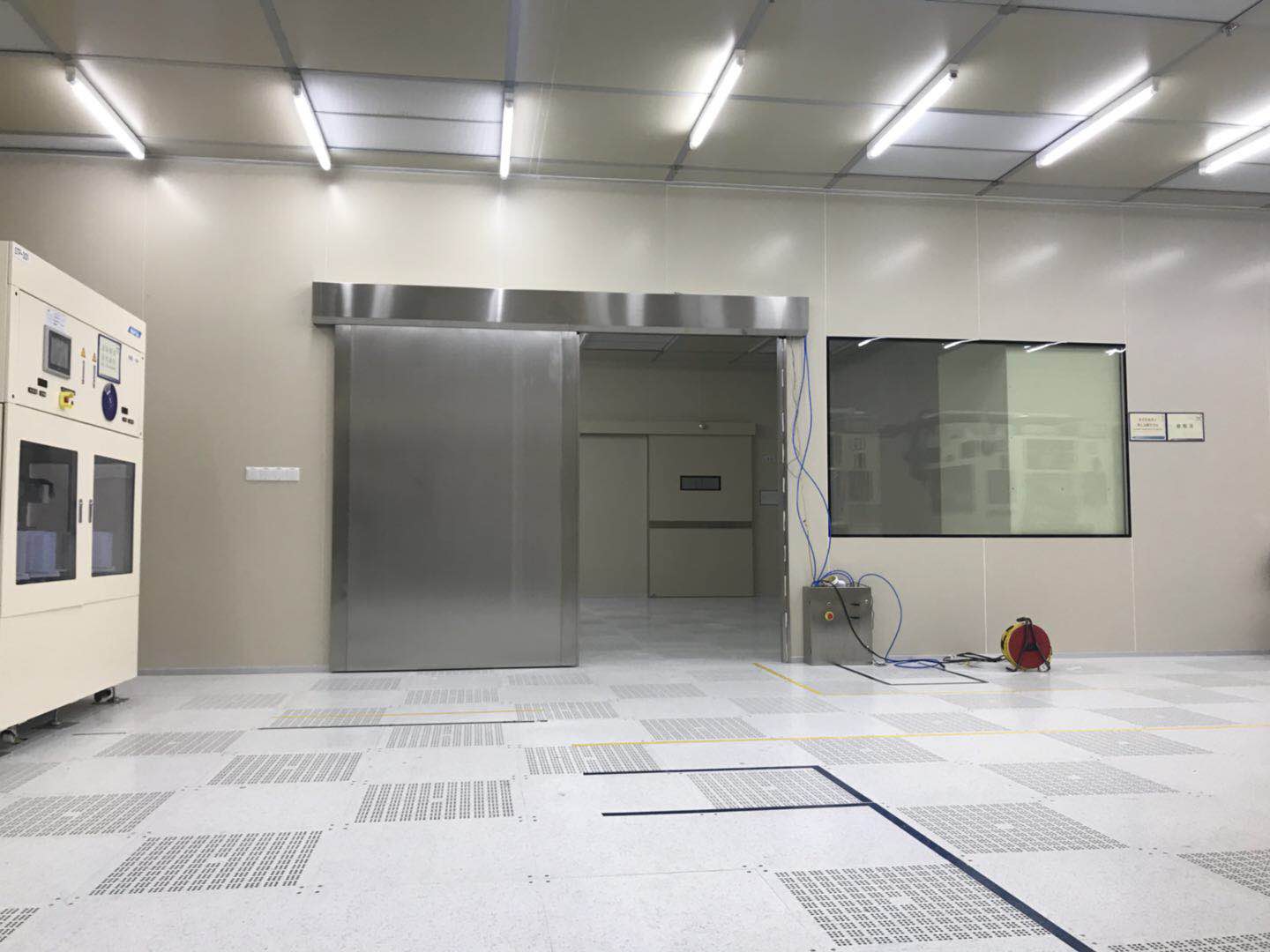

- 潔凈室移門 (Clean Room Slide Door): A slide door specifically designed for cleanroom environments, characterized by high sealing and low particle emission to maintain the cleanliness of the indoor air.
- 電子廠移門 (Electronics Factory Slide Door): A slide door suitable for electronics manufacturing facilities, which may have features such as anti-static properties and high sealing to meet the requirements of the electronic production environment.
- 半導體車間移門 (Semiconductor Workshop Slide Door): A slide door used in semiconductor manufacturing workshops, which typically requires extremely high cleanliness and the ability to precisely control environmental conditions.
